Bathroom Waterproofing Explained Before You Tile a Single Wall

Bathroom waterproofing before tiling matters most where surfaces receive regular spray or standing water. Tiles shed much of that water, but grout joints, cracks and edges can let moisture through. Moisture-resistant boards tolerate damp conditions better than ordinary plasterboard; they do not, by themselves, create a watertight assembly. Even a waterproof board needs properly sealed joints, fixings and connections.

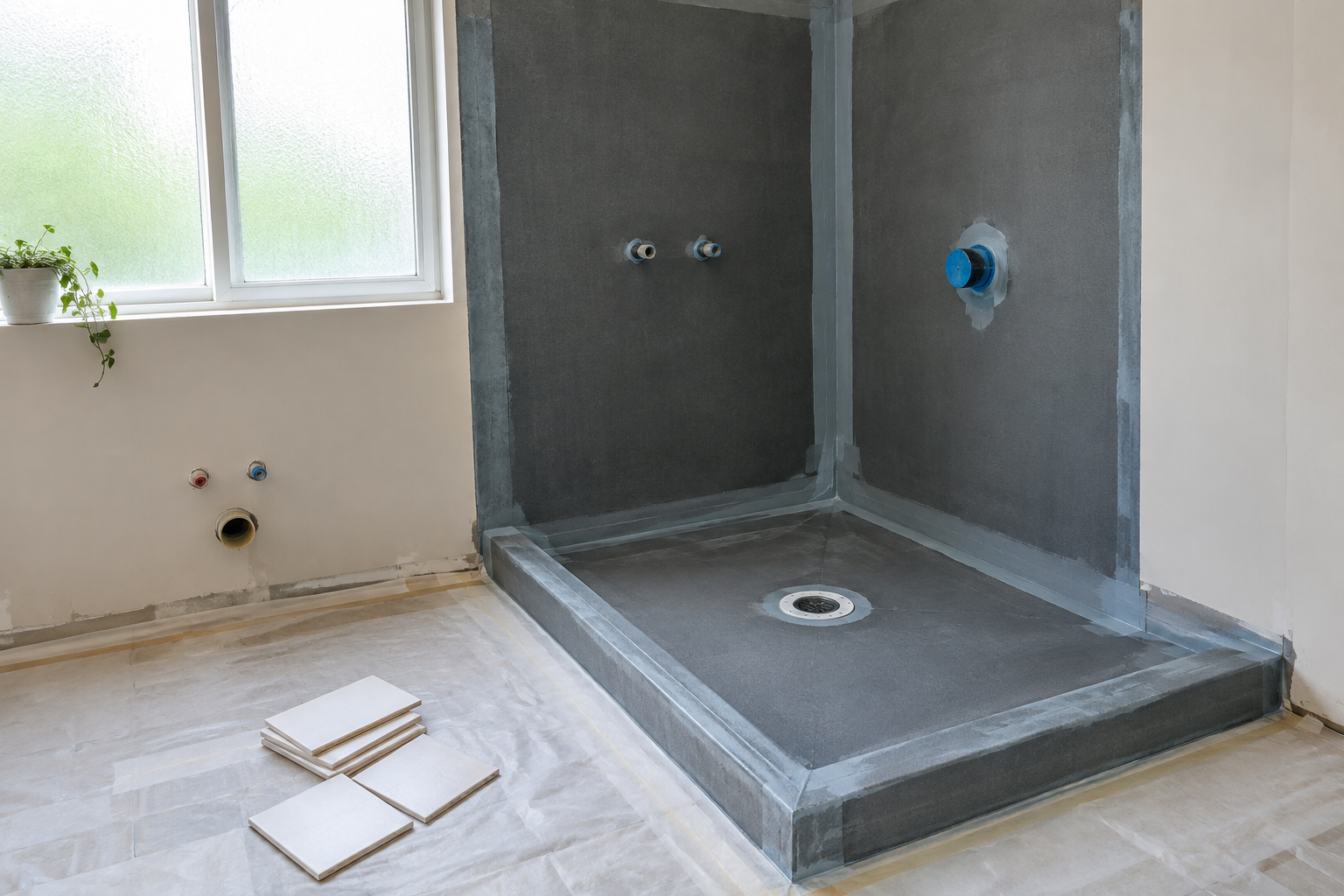

In a shower enclosure, specify a continuous waterproof assembly across the shower floor or tray connections and the walls exposed to spray. Niches, benches and low ledges need particular attention because they collect water. Around a bath used for showering, protect the surrounding walls and detail the bath-to-wall junction using the system’s approved method. A bath without a shower has a different exposure level, but splash-prone junctions still need suitable protection.

Wet-room floors need waterproofing connected correctly to the drain, with details that prevent water escaping at doorways and floor-to-wall junctions. Coverage may extend across the whole floor and up adjoining walls. By contrast, walls beside a toilet or away from bathing areas do not automatically need the same treatment as shower walls.

Requirements differ across US states, Canadian provinces, UK nations and Australian states and territories, with local rules also relevant. Full-room waterproofing is not a universal rule. Ask your contractor to identify the applicable requirements and mark the proposed coverage on a plan before pricing or installation.

Liquid-applied membranes are brushed, rolled or troweled onto a suitable substrate, making them useful around awkward shapes and recesses. Their reliability depends on surface preparation, the specified coat thickness and drying conditions. Corners, board joints and pipe penetrations may need reinforcing tape or proprietary collars embedded as directed. Simply applying two coats does not prove the required thickness has been achieved.

Sheet membranes provide a factory-controlled thickness and can make coverage easier to inspect. However, overlaps, seams, corners and drain connections still need precise installation. Depending on the product, seams are sealed with specified overlaps, bonding materials or tapes. Sheets must be fully bonded where required, without voids or damage that could compromise the assembly.

Waterproof board systems combine a tile-ready backing with waterproofing, potentially reducing separate installation steps. The board face or core may resist water, but cut edges, joints, screw heads and washers must be treated exactly as the manufacturer specifies. Do not confuse these systems with ordinary moisture-resistant boards, which generally need separate waterproofing in shower areas.

Choose a compatible assembly approved for its intended use, rather than selecting each component independently. The membrane, tapes, collars, drain flange, sealants and tile adhesive must work together on the chosen substrate. Use the manufacturer’s documented system or obtain written confirmation of compatibility for substitutions. Also check suitability for steam showers, underfloor heating or other special conditions; a standard shower product is not automatically approved for every bathroom application.

A waterproofing membrane needs a sound, clean and stable base. Remove loose coatings, dust, grease and adhesive residues, and repair damaged surfaces using materials approved for the system. Investigate leaks, rot and persistent damp rather than covering them. Check flatness against the tile and adhesive requirements: a waterproof membrane will not straighten a bowed wall.

Use boards specifically approved for the location and waterproofing assembly. Moisture-resistant plasterboard is not automatically suitable for a shower, and cement board usually still needs a separate waterproofing layer. Fix boards at the specified spacing, support their edges and treat joints as directed. Timber floors must be stiff enough for the complete tile assembly; adding board alone does not necessarily solve excessive movement.

Create drainage falls in the layer specified by the chosen assembly, not by improvising with tile adhesive. A bonded surface membrane normally follows a sloping shower base, while traditional liner assemblies use a different build-up and drain connection. Confirm the membrane’s position, compatible drain and transitions before work starts. Avoid adding extra impermeable layers unless the assembly requires them.

Have structural alterations assessed and carried out by appropriately qualified and licensed professionals, as local rules require. Electrical and gas changes also need appropriately licensed trades. Before sanding, drilling or removing suspect older boards, adhesives or coatings, arrange specialist assessment for asbestos or lead-containing materials; do not disturb them while awaiting advice.

Check every change of plane and penetration before treating the membrane as complete. Corners, board seams, niches and thresholds need the system’s specified bands, overlaps or preformed pieces. Niche bases should drain toward the shower. Seal fastener heads as directed and avoid new fixings through finished waterproofing. Use compatible pipe collars and the specified drain connection; a bead of sealant around an opening is not a substitute for a designed waterproof detail.

For liquid membranes, follow the manufacturer’s coverage rate, coat sequence and minimum finished thickness. Where specified, use a wet-film gauge during application rather than judging thickness by color. For sheets, inspect overlaps, bonded seams and edges for gaps or poor adhesion. Respect temperature, humidity, ventilation and curing limits: touch-dry does not necessarily mean ready for testing or tiling.

Confirm flood-testing and inspection requirements with the installer and local authority before scheduling tiles. They vary by jurisdiction and assembly; some shower bases need a witnessed test or inspection before concealment. Follow the system instructions and local rules for cure time, drain plugging, water depth and test duration. Position the plug as specified so the intended drain connection is tested, and never flood an area not designed to retain water.

Record the installation and any required test results with photographs before covering the membrane. Repair pinholes, damaged seams or leaks using approved details, then repeat the relevant checks. Tiling must wait until repairs have cured and required checks and approvals are complete.

Start with the room footprint: an 8 × 6 ft bathroom measures 48 sq ft (4.46 m²). Assume it contains a 3 × 3 ft shower with two tiled walls, each 3 ft wide and 8 ft high. The shower floor contributes 9 sq ft and the walls contribute 48 sq ft, giving 57 sq ft (5.30 m²) before laps, detailing and any additional required coverage.

In the Bathroom Remodel Cost Calculator, enter 48 sq ft as the bathroom size, select a midrange finish and choose Chicago, US as the location. Membrane coverage is not the calculator’s room-size input: entering 57 sq ft would misstate the room footprint. Treat the remodel estimate as a planning allowance, not a contractor’s offer or confirmation of waterproofing scope.

Compare that estimate with an itemized waterproofing quote covering substrate preparation, slope formation where needed, membrane, corners, penetrations, drain connections, labor and testing. Ask whether the quote also covers the curb, niches and any bathroom floor or wall protection required beyond the measured shower surfaces.

Before adding the quote to your budget, identify any waterproofing or shower-preparation allowance already included in the remodel estimate. Replace overlapping allowances rather than counting both. Keep genuinely additional work separate, and allow for hidden damage. Costs vary by region and contractor; compare quotes with matching specifications, not just matching totals.

For bathroom waterproofing before tiling, approve a documented system rather than a surface that merely looks sealed. Ask the installer to identify the membrane, substrate, drain connection, sealants and accessories, with manufacturer-approved compatibility. Confirm that coverage matches the agreed layout and local requirements, including corners, penetrations, curbs and niches where present.

Check the handover evidence before any membrane is concealed. Dry-looking liquid membrane is not proof of correct thickness or full cure, and elapsed time alone does not establish readiness for testing or tiling. Follow the product instructions for site conditions and obtain any required inspection approval.

Use this final checklist to close out the work. Homeowner approval does not replace a required inspection or the installer’s responsibility for compliance. If evidence is missing, pause tiling until the installer resolves it; repairs become harder once the membrane is covered.

• Are the specified products and required coverage recorded, with thickness checks or seam details appropriate to the system?
• Have curing requirements been met, and are required test results, inspection records and dated photographs available before concealment?
• What relevant waterproofing training does the installer hold, and what local licensing requirements apply?
• Who provides the warranty, and what exclusions apply to mixed products, substrate movement, penetrations or later alterations?
• Does the quote explicitly include preparation, drain detailing, testing and correction of defects before tiling?
